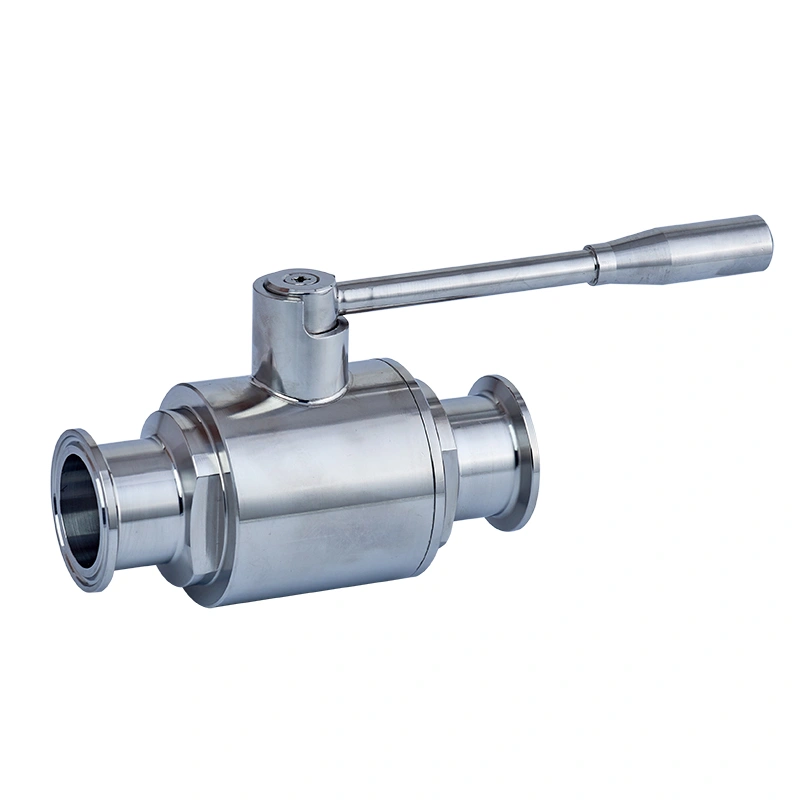

How to Retrofit Manual Valves with Electric Actuators

Introduction

The process of retrofitting manual valves with electric actuators represents a significant step forward in industrial automation, offering improved efficiency, precision, and control in fluid handling systems. This comprehensive guide explores the technical considerations, step-by-step procedures, and best practices for successfully converting manual valves to electric operation.

Understanding the Basics

What is Valve Retrofitting?

Valve retrofitting involves replacing or augmenting existing manual valve components with electric actuators to automate valve operation. This transformation enables remote control, integration with control systems, and enhanced process monitoring capabilities without requiring complete valve replacement.

Benefits of Electric Actuators

Electric actuators provide numerous advantages over manual operation:

- Precision control of valve position

- Remote operation capability

- Integration with SCADA and DCS systems

- Improved safety by reducing manual intervention

- Data collection for process optimization

- Faster response times to process changes

- Reduced labor costs for valve operation

Pre-Retrofit Assessment

Valve Compatibility Evaluation

Before beginning the retrofit process, conduct a thorough assessment of the existing valve:

1. Valve Type Identification: Determine whether the valve is a ball, butterfly, gate, globe, or other type

2. Size and Torque Requirements: Measure valve stem dimensions and calculate operating torque

3. Pressure and Temperature Ratings: Verify compatibility with process conditions

4. Material Compatibility: Ensure actuator materials suit the operating environment

5. Mounting Configuration: Examine flange patterns and stem connections

Process Requirements Analysis

Evaluate the operational needs:

- Required actuation speed

- Duty cycle (continuous or intermittent operation)

- Fail-safe requirements (fail-open, fail-close, or stay-in-position)

- Control signal type (on/off, modulating, smart protocols)

- Environmental conditions (hazardous areas, outdoor exposure)

Selecting the Right Electric Actuator

Torque and Thrust Requirements

Calculate the required torque or thrust based on:

- Valve size and type

- Differential pressure

- Fluid characteristics

- Sealing requirements

- Safety factors (typically 25-50% above calculated requirements)

Electrical Specifications

Determine appropriate electrical characteristics:

- Voltage supply (24V DC, 120V AC, 240V AC, etc.)

- Power consumption

- Enclosure rating (NEMA, IP classifications)

- Explosion-proof requirements if needed

Control Options

Choose between:

- On/Off Control: Simple open/close operation

- Modulating Control: Proportional positioning

- Smart Actuators: With fieldbus communication (Profibus, Foundation Fieldbus, etc.)

- Local Control Options: Pushbuttons or HMI interfaces

Retrofit Procedure

Step 1: Preparation and Safety

1. Isolate the valve from the process

2. Depressurize and drain the system

3. Lock out/tag out energy sources

4. Clean the valve and surrounding area

5. Gather all necessary tools and equipment

Step 2: Manual Valve Disassembly

1. Remove the handwheel or manual operator

2. Document the current configuration (take photos if helpful)

3. Inspect valve components for wear or damage

4. Clean and lubricate the valve stem if necessary

Step 3: Actuator Mounting

1. Install the mounting bracket or adapter kit

- Ensure proper alignment with valve stem

- Use appropriate fasteners with correct torque values

2. Mount the electric actuator

- Verify concentricity with valve stem

- Check for smooth rotation without binding

3. Secure all mounting hardware

Step 4: Mechanical Connection

1. Connect the actuator to the valve stem

- Use appropriate couplings or adapters

- Ensure proper engagement depth

2. Adjust mechanical stops if applicable

3. Verify full range of motion without obstruction

Step 5: Electrical Installation

1. Run conduit and wiring according to electrical codes

2. Connect power supply cables

3. Install control wiring (if separate from power)

4. Ground the actuator properly

5. Install any required local control devices

Step 6: Configuration and Testing

1. Set torque limits (if adjustable)

2. Configure position switches

3. Program control parameters

4. Perform initial manual operation test

5. Conduct powered operation tests:

- Full stroke operation

- Intermediate positioning (for modulating)

- Emergency stop function

6. Verify fail-safe operation (if applicable)

Integration with Control Systems

Wiring Schemes

Common wiring configurations include:

- 2-wire: Simple on/off control

- 3-wire: Separate power and control

- Multi-wire: For feedback signals and advanced control

Signal Types

Understand different control signals:

- Dry contact (relay)

- Analog (4-20mA, 0-10V)

- Digital communication (fieldbus protocols)

SCADA/DCS Integration

For system integration:

- Configure I/O points in control system

- Map actuator status and control signals

- Establish communication protocols

- Create operator interface screens

Commissioning and Validation

Functional Testing

1. Verify proper response to control signals

2. Check position feedback accuracy

3. Test alarm and diagnostic functions

4. Validate safety interlocks

Performance Verification

1. Measure actuation time

2. Check for smooth operation

3. Verify torque requirements match specifications

4. Confirm proper sealing in closed position

Documentation

Complete all necessary documentation:

- As-built drawings

- Wiring diagrams

- Parameter settings

- Test reports

- Maintenance instructions

Maintenance Considerations

Routine Maintenance

Establish a maintenance schedule including:

- Lubrication intervals

- Electrical connection checks

- Seal inspections

- Gear train examination

Troubleshooting

Common issues and solutions:

- Actuator doesn't move: Check power supply, fuses, and limit switches

- Incomplete stroke: Verify torque settings and mechanical obstructions

- Erratic operation: Inspect wiring connections and control signals

- Overheating: Check duty cycle and ambient temperature

Spare Parts Strategy

Maintain critical spare parts:

- Gaskets and seals

- Couplings

- Limit switches

- Control boards (if applicable)

Safety Considerations

Electrical Safety

1. Follow lockout/tagout procedures

2. Use proper PPE

3. Verify proper grounding

4. Adhere to NEC/IEC standards

Process Safety

1. Verify valve position before process startup

2. Confirm fail-safe operation

3. Check for leaks after installation

4. Monitor initial operation closely

Environmental Factors

Consider:

- Temperature extremes

- Moisture and corrosion

- Explosive atmospheres

- Vibration and shock

Cost-Benefit Analysis

Initial Costs

Factor in:

- Actuator purchase

- Mounting hardware

- Electrical installation

- Engineering time

Operational Savings

Calculate potential savings from:

- Reduced labor costs

- Improved process efficiency

- Decreased downtime

- Energy savings

- Predictive maintenance benefits

ROI Calculation

Estimate payback period based on:

- Initial investment

- Annual operational savings

- Maintenance cost differences

- Productivity improvements

Advanced Considerations

Smart Actuator Features

Modern actuators may offer:

- Predictive maintenance capabilities

- Energy monitoring

- Self-diagnostics

- Adaptive control algorithms

Cybersecurity

For networked actuators:

- Implement secure communication protocols

- Use network segmentation

- Apply firmware updates regularly

- Monitor for unauthorized access

Future-Proofing

Consider:

- Expandability for additional features

- Compatibility with emerging standards

- Modular design for easy upgrades

- Documentation for future modifications

Conclusion

Retrofitting manual valves with electric actuators represents a strategic investment in process automation that can yield significant operational benefits. By following proper assessment, selection, installation, and commissioning procedures, organizations can successfully upgrade their valve systems to achieve greater efficiency, reliability, and control. The key to successful retrofitting lies in thorough planning, attention to detail during installation, and proper integration with existing control systems. With careful implementation, electric actuator retrofits can deliver measurable improvements in process performance while maintaining safety and reducing operational costs.
